Installing a Drop Cable Bracket is a necessary part of ensuring safe and secure installation of drop cables in a variety of applications including, but not limited to, telecommunications and electrical systems. The following step-by-step guide will detail all aspects of installing drop cable brackets safely, beginning with pre-installation safety checks and ending with common mistakes to avoid during the installation process.

What Is a Drop Cable Bracket and Where Is It Used?

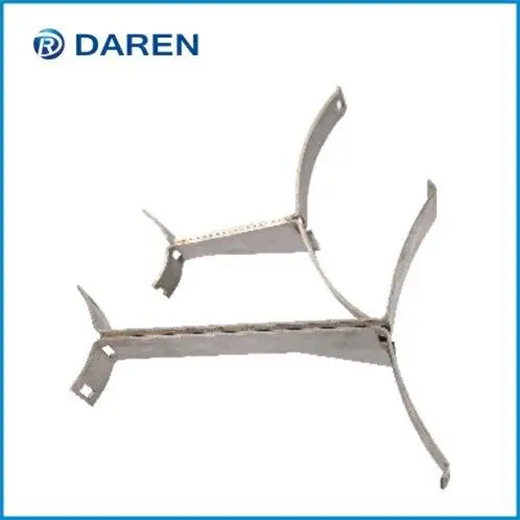

Drop Cable Brackets are designed to be a support mechanism that holds drop cables securely. They are used in the telecommunications, electrical, and data networking sectors to hold cables in an organized manner to prevent sagging or damage, thereby improving the general efficiency of cable management.

Pre-Installation Safety Checklist: What to Inspect First

Prior to starting the installation process, you must do a complete safety check. This is an important aspect of preparation to prevent accidents and to improve the durability of your installation now and after the completion of your project.

1. Tools/Equipment: Confirm you have everything needed to do the job as well as possess all appropriate tools e.g., screwdriver, wrenches, level, and drill.

2. Cable Checking: Inspect for any signs of degradation, wear, or any other risk factors that might compromise performance and/or safety. Discern and document the state and integrity of your cables.

3. Consider an appropriate place to attach brackets: Each bracket must be positioned in an area not subject to excessive foot-traffic, and the backing structure should support all cable weight and tension.

When working near electric wires, be cautious to ensure that you do not receive an electrical shock. Always turn off electricity before proceeding to work。

Step-by-Step Installation Process

Having completed our safety inspections, let’s review how to install your Drop Cable Bracket.

1. Identifying where you want to install the bracket will help you establish a reference point for your installation. If applicable, ensure that this reference point on the wall is in line with the designated cable route.

2. Create Drill Holes: Use an appropriate drill bit and create holes to allow for the mounting screws and their placement based on the type of surface material you will use.

3. Attach the Bracket: Position the bracket against the wall at the pre-drilled holes and secure it into place using screws and/or anchors as necessary. Make sure to use a level or measurement tool so that your cables do not become hung up due to improper tension in the wires.

4. Secure Drop Cables: Using either cable ties or clamps, make sure the drop cables are securely attached to the bracket, while keeping them neither too tight nor too loose.

The final inspection should be completed after all connections have been made as a means to confirm that all cables are secure and appropriately positioned before returning power to the unit (if powered units are used).

Common Installation Mistakes and How to Avoid Them

Although putting in a drop cable bracket may appear to be an easy task, there are certain errors that can be made which could result in issues later on. To avoid these errors here is what to do:

1. Misaligning the Mounting Bracket: Mount brackets in a straight line across from the wall. Brackets should stack evenly, as misalignment will cause failure.

2. Improper cable height installation may result in stranded cables, which could create problems in the long term.

3. Insecure fastenings of screws can lead to unsafe conditions. Be sure that all screws are tightened securely. A loose bracket may result in unsafe conditions.

Conclusion

Efficiently managing cable dropouts involves installing a drop cable bracket, which is an important part of being able to accomplish that objective with the proper steps set forth in this instruction manual. The installation will provide you with a safe and efficient installation, plus it will create longevity for your cables. You should also include safety checks, not make common errors, and install in accordance to local code requirements on your job site.
