The Stainless Steel Easy Read Cable Markers are important for the proper functioning of cable management systems. Their capability of providing permanent and clear identification, even in harsh environments, makes them superior compared to other labeling solutions in various applications ranging from factories to ships. The article covers the classification, characteristics, marking methods, mounting types, and important points in selecting stainless steel cable markers.

Types of Stainless Steel Easy Read Cable Markers

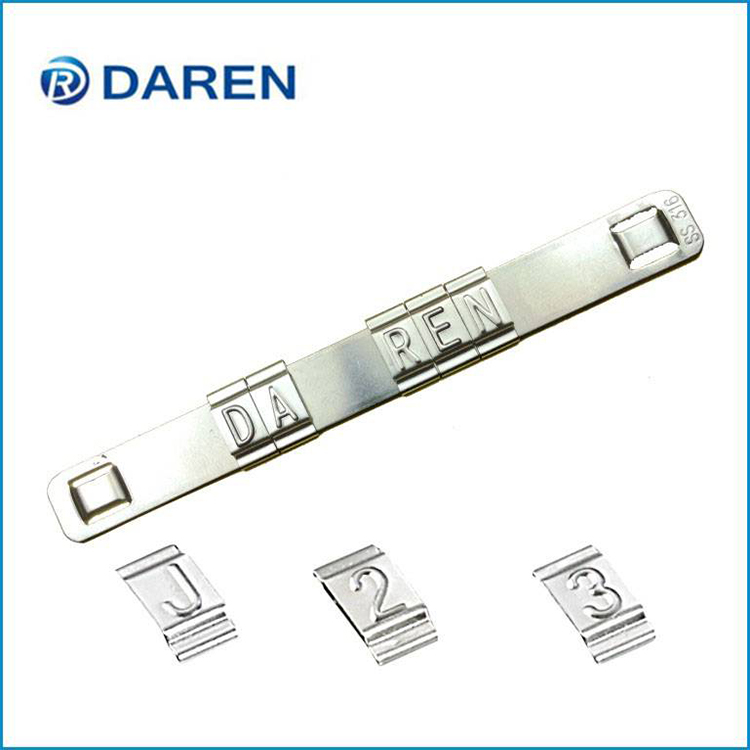

There are multiple variants of Stainless Steel Easy Read Cable Markers available in the market according to different cable sizes and cable requirements. The common types are plate markers which refer to either rectangular or oval markers with holes for mounting plates that can be attached to cables with the help of stainless steel ties. Self-locking tags and wrap-around tags provide fast installation and flexible fitting which makes them useful in fitting individual wires and bundles of wires. Clip-on markers are flexible and reusable markers for maintenance or temporary installations. It allows people to select the perfect marker type according to their cable management needs as per their installation.

Key Features and Benefits

Stainless steel cable marker options are perfect for durability, clear writing, and resistance to damage. These cable markers can withstand heat and chemicals so that they are reliable in extreme environments, including humid and aqueous situations. Because the markers use deep embossing or lasers for lettering, it is easy to read them even in poor lighting.

Flexibility of installation is another important characteristic. There are many different options available, including screws, strips, or brackets—to meet a variety of installation needs, from retrofitting to placing the labels permanently. Furthermore, since the markers are made from stainless steel, they comply with all relevant regulations concerning the maintenance of traceable and tamper-proof identification of cables across various industries, such as marine, utility, fire protection, and transport.

316 vs 304 Stainless Steel: Which Grade Lasts Longer?

In the process of choosing stainless steel cable markers, one must take material grade into consideration. Molybdenum-rich 316 stainless steel is recommended for highly corrosive environments such as saltwater or chemical processing plants since it has a considerable resistance against both chloride and acid corrosion. Meanwhile, while 304 stainless steel is rated to have a more moderate resistance level to extreme environments, it is still suitable for indoor and general outdoor operations where it will not be exposed to harsh chemicals or maritime environment.

Use of 316 material is better suggested rather than that of 304 in conditions which require extended durability and minimum upkeep. However, use of 304 material may suffice for normal industrial environment.

Marking Methods: Embossing, Engraving, and Laser Etching

The effectiveness of cable marking depends largely on the marking method. The embossing process produces characters that are raised and highly durable, making them visible and capable of surviving cleaning, abrasion, and aging. Laser etching allows for very fine detail and high contrast, making it suitable for complex labels such as barcodes and QR codes. Engraving cuts the information into the surface of the tag, resulting in permanent lettering that is somewhat recessed. All of these techniques ensure that the marking will be readable over time, which is critical for important or dangerous applications.

Cable Tie vs Strap vs Plate: Mounting Styles Compared

Cable mounting forms affect the speed and security of the installation process. Quick installation and connection of round cables or cable bundles is offered by cable ties, whereas strap mounts are ideal for attaching cable markers on pipes or heavy duty wires. Plate mounts call for fixed installation by use of screws or rivets. Irrespective of the type of connecting mechanism, the installation process relies heavily on cable configuration, conditions of working environment, and future maintenance needs.

Readability in Harsh Environments: Font Size and Contrast

Legibility is important for safety operations. Tags that are made of bigger lettering (generally 6mm or more) assist visually especially from afar and in dark conditions. Deep embossed or dark laser marked symbols on a brushed or dark background guarantee a high level of contrast which diminishes the chances of making errors. Steel tags remain clear despite the dirtiness, vibrations, and rough environment, thus protecting important identification and avoiding spending money unnecessarily.

Applications and Industry Use Cases

Stainless Steel Easy Read Cable Markers are crucial in power distribution, industrial automation, maritime, chemical processing, and transportation. Their performance under extreme conditions meets tight safety and regulatory standards. Moreover, effective cable identification contributes to minimizing the downtime, ensuring safety audits, and enabling quick maintenance or upgrading of equipment.

FAQ

Can I re-label a cable without removing the existing marker?

Yes, in most cases. Clip-on and wrap-around styles can be added alongside an old tag, but avoid overlapping characters. If space is tight, remove the old marker carefully to prevent jacket damage.

How do I keep characters readable after years of dirt and cleaning?

Choose deep-embossed or dark laser marking with strong contrast, and clean with a soft brush and mild detergent. Avoid abrasive pads, which can wear down raised characters over time.

Is 304 grade enough for an outdoor installation near the coast?

Generally no. Coastal air carries chlorides, so 316 is the safer choice. Reserve 304 for indoor or general outdoor sites without salt or chemical exposure.

Can markers be custom-printed with logos or sequential numbers?

Yes. Laser etching supports fine detail such as logos, barcodes, and sequential numbering, while embossing suits simple, highly durable characters. Confirm the method matches your readability needs.

The Easy Read Cable Markers made out of stainless steel are efficient, durable and designed to work in a variety of environments. By choosing the right type of marker, its grade, method of marking, and techniques of mounting, you are guaranteed to achieve an increase in security, compliance, and efficiency. Therefore, high quality stainless steel markers should be regarded as a basis for good cable management.
