Stainless steel cable Ties-Ladder Multi-Lock Fully polyester Coated Ties

short description:

◆ Product material: 201 material, 304 material, 316 material
◆ Applicable tools: CT02, HT-338
◆ Product coating: polyester epoxy,Nylon 11
◆ Working temperature: white steel -40°C~85°C
◆ length: 150 the above


Product Detail

FAQ

Product Tags

The operation video

Wenzhou Darren Electric Co., Ltd.

A professional manufacturer. For many years, the company has focused on the research of strapping technology, specializing in the production of various styles of stainless steel cable ties and supporting products.

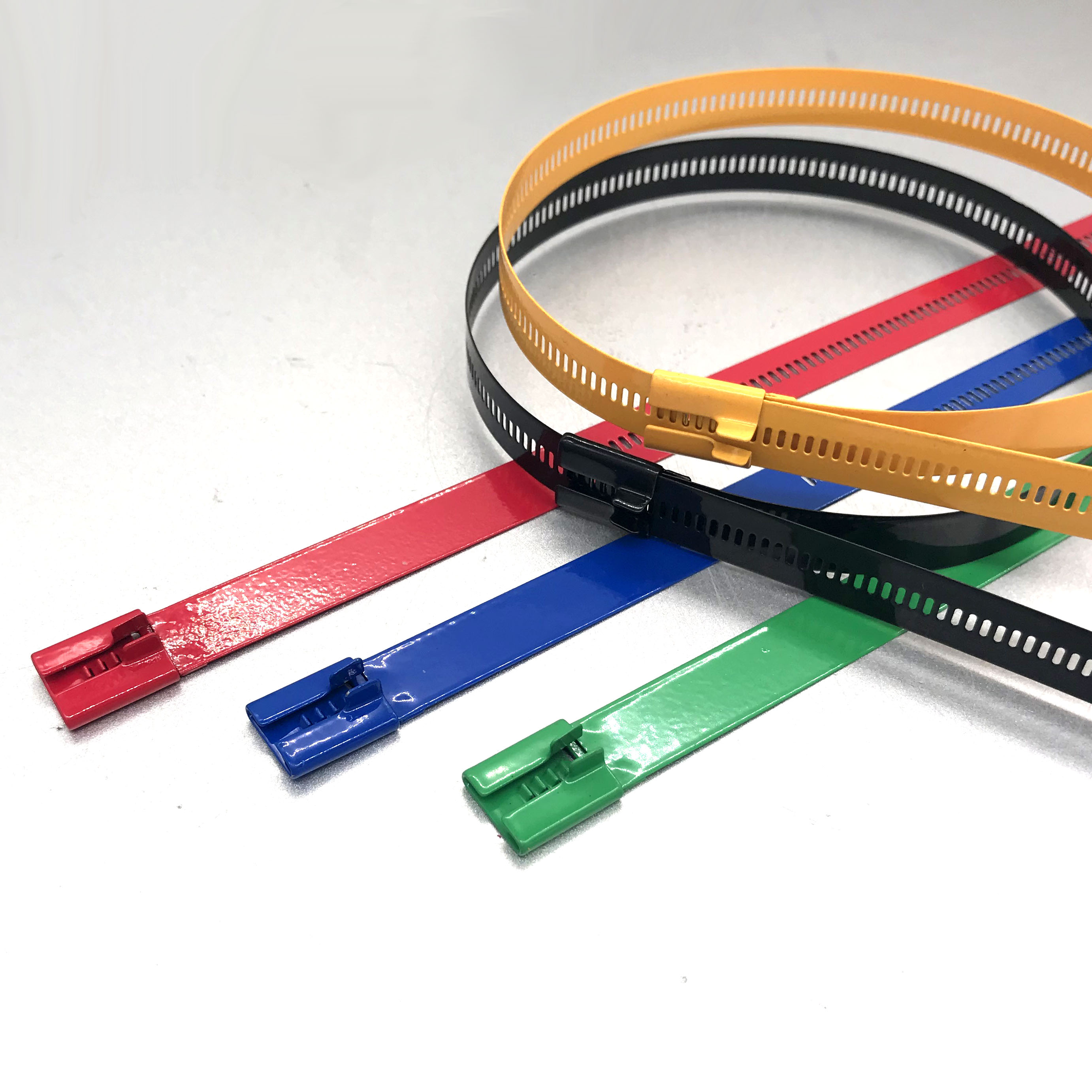

Ladder Type stainless steel cable tie

1. Special tooth-shaped design, automatically fasten the groove on the belt body. No special tools are required, and installation is quick and easy. Available both indoors and outdoors.

2. The use length can be adjusted arbitrarily. The belt groove extends to the end of the belt, which can make full use of the length of the belt to make the maximum beam diameter.
3. The round hole design at the end of the strap is convenient for tightening with hook tools.
4. Application: Suitable for applications in industry, agriculture, communications, petroleum, aviation, transportation, shipbuilding, electric power, shipbuilding and oil pipeline engineering.

15739de87e69b201f74f13393e980bc







Technical Parameter
◆ Product material: 201 material, 304 material, 316 material
◆ Applicable tools: CT02, HT-338
◆ Product coating: polyester epoxy,Nylon 11
◆ Working temperature: white steel -40°C~85°C
◆ length: 150 the above
◆ Product features: The self-locking system hasp is simple, practical and easy to operate; the large slot at the tail is convenient for configuration tools. Compared with single hook ties, the tension is stronger.
Advantage
The powerful self-locking system does not require extra crimping and folding operations. The buckle is simple and practical and easy to operate; the slot at the tail is convenient for the application of configuration tools, which is more powerful than the single hook stepped cable tie Big. Full spray polyester resin powder can provide additional edge protection and avoid corrosion between metals.
Product Specifications

width/mm

7

12

Baseband thickness/mm

0.25/0.3

0.25/0.3

Applicable tools

CT02     HT-338

CT02

5 Model (1)_00
Product use operation
c2-2
Detailed parameters

Item No width length thickness Maximum bundle diameter Minimum bundle diameter Minimum pull Recommended Installation tools
   mm   inch    mm inch mm inch mm inch mm inch N IBS
JTP-07*150 7 0.28 150 5.91 0.25
0.3
0.01 40 1.57 12.7 0.50 1110 246 CT02
HT-338
JTP-07*225 225 8.86 62 2.44
JTP-07*300 300 11.81 81 3.19
JTP-07*335 335 13.2 92 3.6
JTP-07*400 400 15.75 113 4.45
JTP-07*450 450 17.72 127 5
JTP-07*490 490 19.3 141 5.6
JTP-07*550 550 21.65 159 6.26
JTP-07*600 600 23.62 176 6.93
JTP-07*650 650 25.6 192 7.6
JTP-07*700 700 27.56 207 8.15
JTP-07*750 750 29.5 224 8.8
JTP-07*800 800 31.50 238 9.37
JTP-07*900 900 35.43 271 10.67
JTP-07*1000 1000 39.37 303 11.93
JTP-12*150 12 0.47 150 5.91 0.25
0.3
0.01 40 1.57 25.4 1.00 1200 266 CT02
JTP-12*225 225 8.86 62 2.44
JTP-12*300 300 11.81 81 3.19
JTP-12*335 335 13.2 92 3.6
JTP-12*400 400 15.75 113 4.45
JTP-12*450 450 17.72 127 5
JTP-12*490 490 19.3 141 5.6
JTP-12*550 550 21.65 159 6.26
JTP-12*600 600 23.62 176 6.93
JTP-12*650 650 25.6 192 7.6
JTP-12*700 700 27.56 207 8.15
JTP-12*750 750 29.5 224 8.8
JTP-12*800 800 31.50 238 9.37
JTP-12*900 900 35.43 271 10.67
JTP-12*1000 1000 39.37 303 11.93
